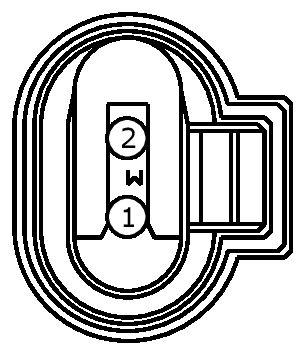

Connector End View (C904) - HIGH MOUNTED STOPLAMP
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C904
Description
HIGH MOUNTED STOPLAMP
Color
GY
Harness
17N400
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLS17 (YE-GY) | 20 | CTRL MOD. - STOP HIGH MOUNT | |
| 2 | GD150 (BK-WH) | 22 | GROUND - PILLAR D LEFT # 2ND STUD |

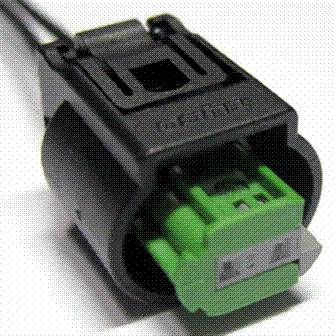

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1131 |
Service Part Number: BU2Z-14S411-BA Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) |
