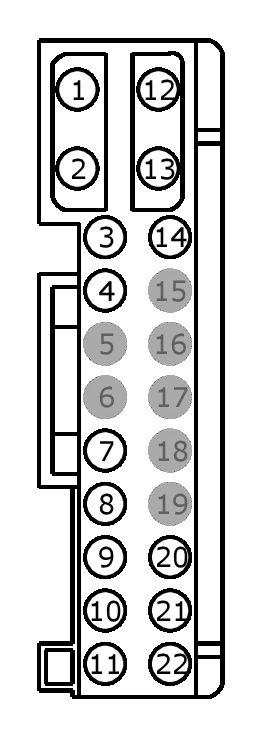

Connector End View (C832) - DOOR MODULE, RIGHT REAR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C832
Description
DOOR MODULE, RIGHT REAR
Color
BK
Harness
14240
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW53 (YE-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN | |
| 2 | SBR04 (GN-RD) | 12 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 3 | CPL11 (BK) | 20 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 4 | CPL54 (BK) | 20 | CTRL MOD. - DOOR LOCK # REAR PASSENGER SIDE UNLOCK (INCL.SLIDING D.) | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CPW08 (GN-BU) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION | |
| 8 | LPW54 (BN-GN) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS | |
| 9 | VPW56 (BN-BU) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 1 | |
| 10 | VPW57 (BU-GY) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 2 | |
| 11 | CPW23 (GY) | 22 | SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN | |
| 12 | CPW52 (VT-WH) | 12 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP | |
| 13 | GD140 (BK-GN) | 12 | GROUND - COWL SIDE/PILLAR A RIGHT # 3RD POINT | |
| 14 | RPW55 (GY-VT) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | CPL38 (VT) | 22 | SWITCH - LATCH REAR DRIVER SIDE # UNLOCK | |
| 21 | VPW33 (VT-BN) | 20 | CTRL MOD. - REAR DOOR CTRL MOD. PASSENGER SIDE LIN BUS | |
| 22 | CPW24 (WH-VT) | 22 | SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1461 |
Service Part Number: GU2Z-14S411-DA Gauge: 14 20 Pin material: Tin & Silver Cavities: 22 Vehicle Uses Module - Driver Door Module - Passenger Door Module - Remote Keyless Entry |
