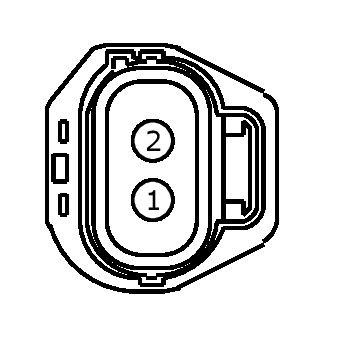

Connector End View (C828) - POWER WINDOW MOTOR, RIGHT REAR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C828
Description
POWER WINDOW MOTOR, RIGHT REAR
Color
BK
Harness
14240
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW23 (GY) | 12 | SWITCH - POWER WINDOW REAR RIGHT # DOWN | |
| 2 | CPW24 (WH-VT) | 12 | SWITCH - POWER WINDOW REAR RIGHT # UP |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1245 |
Service Part Number: BU2Z-14S411-BLA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - RH - Front |
