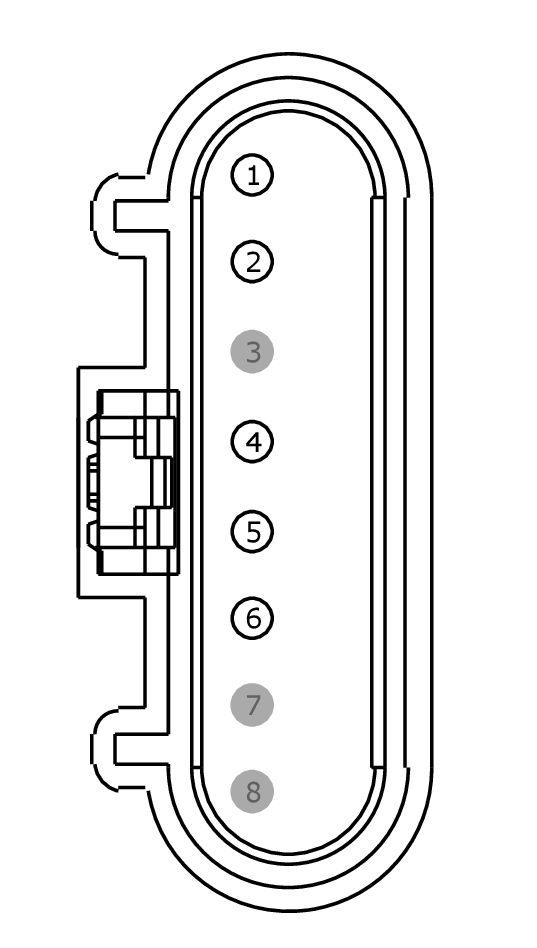

Connector End View (C805) - DOOR LATCH, RIGHT REAR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C805
Description
DOOR LATCH, RIGHT REAR
Color
Harness
14240
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL53 (WH-OG) | 14 | CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE UNLOCK (INCL.SLIDING DOOR) | without door modules |
| 1 | CPL54 (BK) | 20 | CTRL MOD. - DOOR LOCK # REAR PASSENGER SIDE UNLOCK (INCL.SLIDING D.) | with door modules |
| 2 | CPL11 (BK) | 20 | CTRL MOD. - DOOR LOCK # ALL LOCK | with door modules |
| 2 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | without door modules |
| 3 | * | * | Not Used | |
| 4 | GD140 (BK-GN) | 20 | GROUND - COWL SIDE/PILLAR A RIGHT # 3RD POINT | without door modules |
| 4 | RPL72 (BK-GN) | 22 | CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE | with door modules |
| 5 | CPL38 (VT) | 22 | SWITCH - LATCH REAR DRIVER SIDE # UNLOCK | with door modules |
| 5 | CPL41 (GN-BU) | 20 | SWITCH - LATCH REAR PASSENGER SIDE # UNLOCK | without door modules |
| 6 | CPL39 (YE) | 20 | SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR) | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1366 |
Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar / Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact |
