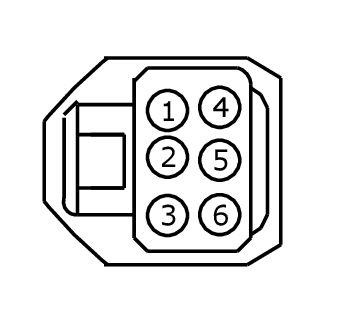

Connector End View (C703) - POWER WINDOW MOTOR, LEFT REAR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C703
Description
POWER WINDOW MOTOR, LEFT REAR
Color
BK
Harness
14240
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW46 (GY-BN) | 12 | CTRL MOD. - WINDOW MOTOR REAR LEFT # UP | |
| 2 | VPW50 (GN-OG) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSOR 1 | |
| 3 | LPW48 (YE-GY) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS | |
| 4 | CPW47 (VT-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN | |
| 5 | VPW51 (BN-YE) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSOR 2 | |
| 6 | RPW49 (BU-BN) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1344 |
Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
