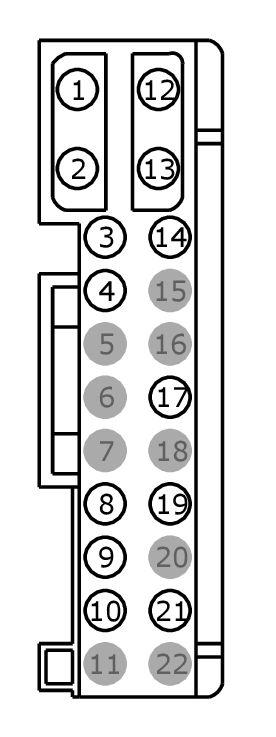

Connector End View (C652A) - PASSENGER DOOR MODULE (PDM)
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C652A
Description
PASSENGER DOOR MODULE (PDM)
Color
GY
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW40 (WH) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP | |
| 2 | SBR02 (BK) | 12 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 3 | CPL65 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER LOCK | |
| 4 | CPL66 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER UNLOCK | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | VPW33 (BK) | 20 | CTRL MOD. - REAR DOOR CTRL MOD. PASSENGER SIDE LIN BUS | |
| 9 | VPW44 (BU-OG) | 22 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSOR 1 | |
| 10 | VPW45 (GN-WH) | 22 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSOR 2 | |
| 11 | * | * | Not Used | |
| 12 | CPW41 (GY-YE) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN | |
| 13 | GD140 (BK-VT) | 12 | GROUND - COWL SIDE/PILLAR A RIGHT # 3RD POINT | |
| 14 | RPL64 (BK) | 22 | CTRL MOD. - DOOR LOCK # LATCH PASSENGER | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | RPW43 (YE-GN) | 22 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSORS | |
| 18 | * | * | Not Used | |
| 19 | CPL35 (BU) | 22 | SWITCH - LATCH PASSENGER # UNLOCK | |
| 20 | * | * | Not Used | |
| 21 | LPW42 (VT-GY) | 22 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # SENSORS | |
| 22 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1461 |
Service Part Number: GU2Z-14S411-DA Gauge: 14 20 Pin material: Tin & Silver Cavities: 22 Vehicle Uses Module - Driver Door Module - Passenger Door Module - Remote Keyless Entry |
