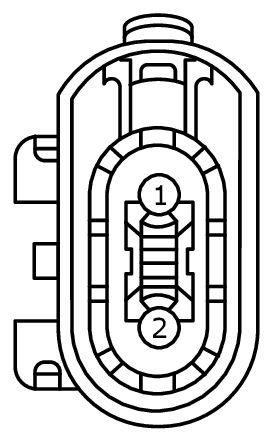

Connector End View (C650) - AMBIENT AIR TEMPERATURE (AAT) SENSOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C650
Description
AMBIENT AIR TEMPERATURE (AAT) SENSOR
Color
BK
Harness
PIA
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
VH407 (*) |
* |
SENSOR - AMBIENT TEMP. |
| 2 |
RH107 (*) |
* |
CTRL MOD. - SIGNAL RETURN |
