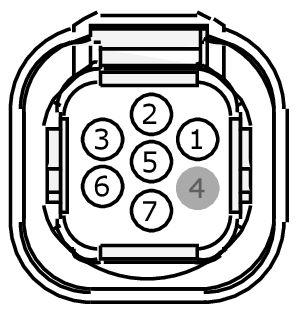

Connector End View (C645) - EXTERIOR DOOR HANDLE, RIGHT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C645
Description
EXTERIOR DOOR HANDLE, RIGHT FRONT
Color
GN
Harness
14F302
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPK12 (YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE FRONT PASSENGER SIDE + | |
| 2 | CPK12 (GN-BN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE FRONT PASSENGER SIDE - | |
| 3 | CPK15 (GN-WH) | 20 | FUSE - 3 OR CIRCUIT BREAKER | |
| 4 | * | * | Not Used | |
| 5 | CPK23 (YE-VT) | 22 | SWITCH - HANDLE UNLOCK PASSENGER | |
| 6 | CPK19 (BU-GN) | 22 | SWITCH - HANDLE LOCK PASSENGER | |
| 7 | GD150 (BK-WH) | 20 | GROUND - REMOTE FUNCTION ACTUATOR (RFA) MODULE RETURN |
