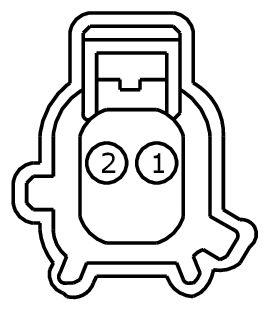

Connector End View (C644) - SIDE IMPACT SENSOR, PASSENGER FRONT DOOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C644
Description
SIDE IMPACT SENSOR, PASSENGER FRONT DOOR
Color
BK
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR152 (GY-YE) | 20 | PASSENGER FRONT DOOR IMPACT SENSOR | |
| 2 | RR152 (YE-VT) | 20 | PASSENGER FRONT DOOR IMPACT SENSOR, RETURN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-948 |
Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact |
