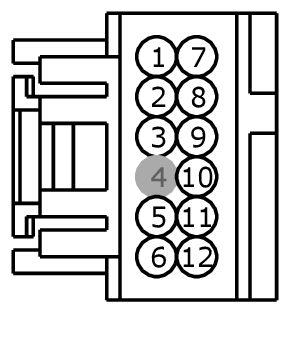

Connector End View (C626) - EXTERIOR REAR VIEW MIRROR, RIGHT

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C626

Description

EXTERIOR REAR VIEW MIRROR, RIGHT

Color

Harness

14K138

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPM00 (BK-VT)	20	CTRL MOD. - RIGHT MIRROR UP	without door modules
1	CPM34 (WH-BN)	22	CTRL MOD. - RIGHT MIRROR UP	with door modules
2	CPM00 (BN-GN)	20	CTRL MOD. - RIGHT MIRROR COMMON GLASS ADJUSTMENT	without door modules
2	CPM06 (GN-WH)	22	CTRL MOD. - RIGHT MIRROR COMMON GLASS ADJUSTMENT	with door modules
3	CPM00 (VT-GN)	20	CTRL MOD. - RIGHT MIRROR RIGHT	without door modules
3	CPM33 (WH-VT)	22	CTRL MOD. - RIGHT MIRROR RIGHT	with door modules
4	*	*	Not Used
5	CPM00 (BN-GN)	18	CTRL MOD. - HEATER MIRROR RIGHT	without door modules and with rear power windows
5	CRD14 (WH-OG)	22	CTRL MOD. - HEATER MIRROR RIGHT	with door modules
6	CPM00 (BK)	20	CTRL MOD. - RIGHT MIRROR RETURN	without door modules and with rear power windows
6	RPM08 (GN-BU)	22	CTRL MOD. - RIGHT MIRROR RETURN	with door modules
7	CLS26 (BU-GY)	22	CTRL MOD. - TURN LAMP RIGHT MIRROR	with door modules
7	CPM00 (GN-OG)	18	CTRL MOD. - TURN LAMP RIGHT MIRROR	without door modules and with rear power windows
8	CLN32 (BN-YE)	22	CTRL MOD. - PUDDLE LAMP RIGHT	with door modules
9	RH107 (BK-YE)	20	CTRL MOD. - SIGNAL RETURN	with door modules
10	VH407 (YE-GN)	20	SENSOR - AMBIENT TEMP.	with door modules
11	GD140 (BK-GN)	22	GROUND - COWL SIDE/PILLAR A RIGHT # 3RD POINT
12	CLS28 (BK-BU)	22	CTRL MOD. - PASSENGER DOOR

Available Pigtail Kits

Pigtail Kit Part Number

WPT-949

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BMAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Control - Navigation Display

Module - Driver Door

Module - Front Interface

Monitor - Video/DVD

Switch - Gear Shift Select/Neutral Safety
