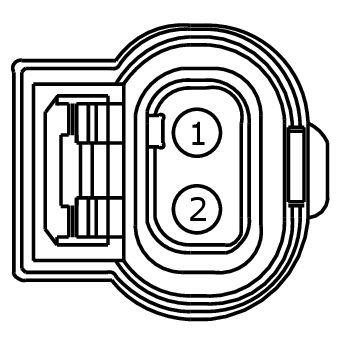

Connector End View (C1451) - VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1451
Description
VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE OUTPUT OR CIRCUIT BREAKER (VPWR) | |
| 2 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID |

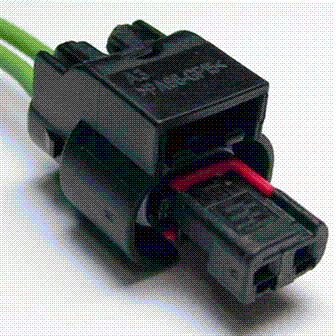

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1251 |
Service Part Number: CU2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Solenoid - Engine Variable Timing |
