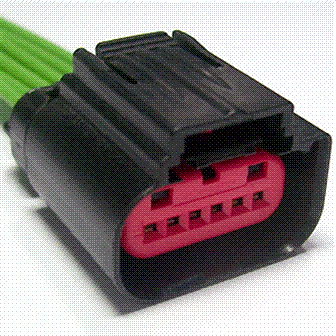

Connector End View (C1449) - ELECTRONIC THROTTLE CONTROL (ETC)

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1449

Description

ELECTRONIC THROTTLE CONTROL (ETC)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

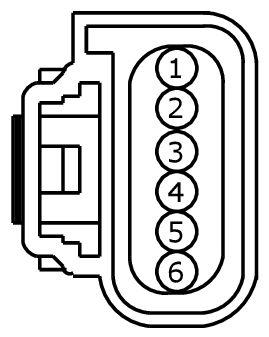

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE819 (GN-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	GDI
1	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	GTDI
1	CE426 (BU-GN)	20	TPS-SUP	1.0L FOX
2	CE412 (YE-VT)	20	TP - NS	1.0L FOX
2	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	GTDI
2	LE428 (BU-WH)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	GDI
3	VE818 (BN)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	GDI / GTDI
3	RE427 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (ETCRTN)	1.0L FOX
4	LE428 (BU-WH)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	1.0L FOX
4	RE427 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (ETCRTN)	GDI
4	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	GTDI
5	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	GTDI
5	CE426 (BU-GN)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (ETCREF)	GDI
5	VE818 (BN)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	1.0L FOX
6	VE819 (GN-VT)	18	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)	1.0L FOX
6	CE412 (YE-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)	GDI
6	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)	GTDI

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1063

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-MA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Control - Electronic Throttle
