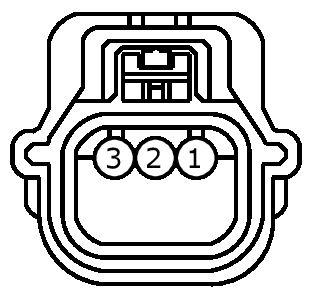

Connector End View (C1429) - PARKING AID SENSOR FRONT, INNER LEFT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1429
Description
PARKING AID SENSOR FRONT, INNER LEFT
Color
Harness
15K867
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP06 (VT-GY) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT | |
| 2 | VMP10 (WH-BU) | 20 | SENSOR - PARKING AID # FRONT # (LEFT INNER) | |
| 3 | RMP06 (YE-OG) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1400 |
Service Part Number: 9U2Z-14S411-CC Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
| Pigtail Kit Part Number WPT-1315 |
Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
