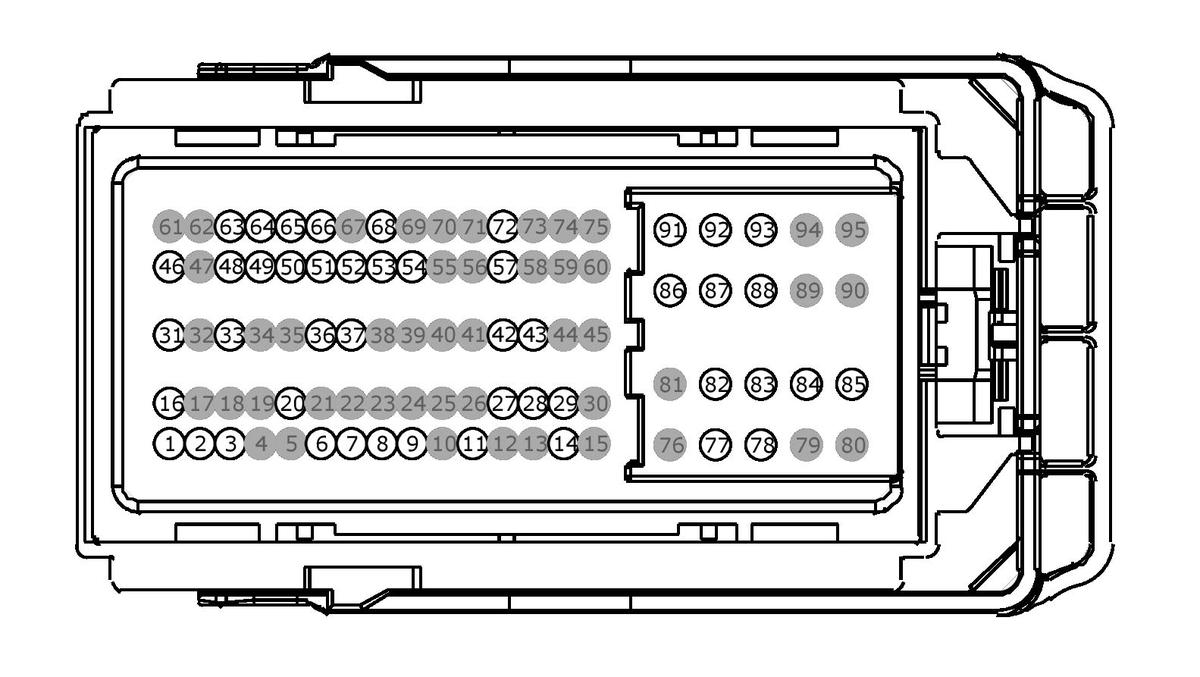

Connector End View (C1381E) - POWERTRAIN CONTROL MODULE (PCM)
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1381E
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID | |
| 2 | CE470 (WH-BU) | 18 | CTRL MOD. - POWERTRAIN # SOUND SYMPOSER CONTROL (SSC) | |
| 3 | VE836 (VT-GN) | 20 | SENSOR - WASTEGATE POSITION (WGT_PS) | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) | |
| 7 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 8 | LE238 (GY) | 18 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR (VREF) | |
| 9 | CMC24 (GY) | 18 | SWITCH - OIL PRESSURE | |
| 10 | * | * | Not Used | |
| 11 | VE711 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION (CKP) SENSOR (CKP) | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | VE827 (WH-GN) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SHTR11) | |
| 15 | * | * | Not Used | |
| 16 | VE824 (BU-RD) | 20 | SOLENOID - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE (TCWRVS) | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used | |
| 27 | CE471 (GN-OG) | 18 | CTRL MOD. - POWERTRAIN # SOUND SYMPOSER MONITOR (SSM) | |
| 28 | VE706 (BN-BU) | 20 | SENSOR - CAMSHAFT POSITION 11 (CMP11) | |
| 29 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID | |
| 30 | * | * | Not Used | |
| 31 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | |
| 32 | * | * | Not Used | |
| 33 | LE329 (BU) | 18 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) + | |
| 34 | * | * | Not Used | |
| 35 | * | * | Not Used | |
| 36 | VE716 (YE) | 20 | SENSOR - ENGINE COOLANT TEMPERATURE (ECT) | |
| 37 | VE761 (BN-BU) | 18 | SENSOR - FUEL LOW PRESSURE (FLPS) | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | CE303 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) | |
| 43 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4C) | |
| 44 | * | * | Not Used | |
| 45 | * | * | Not Used | |
| 46 | VE712 (BU-GY) | 18 | SENSOR - CYLINDER HEAD TEMPERATURE 2 (CHT2) | |
| 47 | * | * | Not Used | |
| 48 | LE452 (GN) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) | |
| 49 | LE448 (GY-BU) | 18 | UNIVERSAL OXYGEN SENSOR GROUND REFERENCE #11 (UO2SGREF 11) | |
| 50 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND [KS2+] | |
| 51 | RE324 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND [KS2-] | |
| 52 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) | |
| 53 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 54 | VE707 (GN-VT) | 20 | SENSOR - CAMSHAFT POSITION 12 (CMP12) | |
| 55 | * | * | Not Used | |
| 56 | * | * | Not Used | |
| 57 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D) | |
| 58 | * | * | Not Used | |
| 59 | * | * | Not Used | |
| 60 | * | * | Not Used | |
| 61 | * | * | Not Used | |
| 62 | * | * | Not Used | |
| 63 | LE451 (BN-YE) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) | |
| 64 | VE826 (BN-VT) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) | |
| 65 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST OR UNIQUE [KS1+] | |
| 66 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE [KS1-] | |
| 67 | * | * | Not Used | |
| 68 | VE818 (BN) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 69 | * | * | Not Used | |
| 70 | * | * | Not Used | |
| 71 | * | * | Not Used | |
| 72 | CE305 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) | |
| 73 | * | * | Not Used | |
| 74 | * | * | Not Used | |
| 75 | * | * | Not Used | |
| 76 | * | * | Not Used | |
| 77 | RE226 (GN-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVRRTN) | |
| 78 | CE226 (YE-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVR) | |
| 79 | * | * | Not Used | |
| 80 | * | * | Not Used | |
| 81 | * | * | Not Used | |
| 82 | CE207 (VT-GY) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) | |
| 83 | CE206 (GY-YE) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) | |
| 84 | CE205 (GN-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) | |
| 85 | CE208 (YE-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) | |
| 86 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | |
| 87 | RE205 (YE-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ1RTN) | |
| 88 | RE206 (BU-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN) | |
| 89 | * | * | Not Used | |
| 90 | * | * | Not Used | |
| 91 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | |
| 92 | RE208 (BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4RTN) | |
| 93 | RE207 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3RTN) | |
| 94 | * | * | Not Used | |
| 95 | * | * | Not Used |
