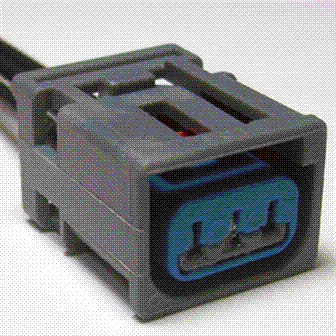

Connector End View (C1367) - CAMSHAFT POSITION 12 (CMP12) SENSOR

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1367

Description

CAMSHAFT POSITION 12 (CMP12) SENSOR

Color

Harness

12C508/12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE707 (GN-VT)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT POSITION 12 (CMP12) SENSOR (VREF)	GDI
1	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT POSITION 12 (CMP12) SENSOR (VREF)	GTDI
2	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT POSITION 12 (CMP12) SENSOR (SIGRTN)	GTDI
2	LE144 (YE-VT)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT POSITION 12 (CMP12) SENSOR (SIGRTN)	GDI
3	RE144 (BN)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT POSITION 12 (CMP12) SENSOR	GDI
3	VE707 (GN-VT)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT POSITION 12 (CMP12) SENSOR (CMP12)	GTDI

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1205

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KMB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Delta Pressure Feedback EGR

Sensor - Fuel Tank Pressure Transducer
