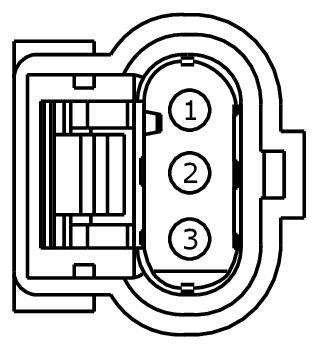

Connector End View (C1339) - CRANKSHAFT POSITION (CKP) SENSOR

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1339

Description

CRANKSHAFT POSITION (CKP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE238 (GY)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR (VREF)
2	VE711 (YE-VT)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION (CKP) SENSOR (CKP)
3	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1530

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Lamp - Front Turn

Lamp - Park/Turn

Module - Handsfree Liftgate Entry

Monitor - Crankcase Ventilation

Motor - Intercooler Pump

Pump - Auxiliary Heater

Pump - Coolant Module

Pump - Transfer Case Coolant

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

Sensor - Crankcase Pressure

Sensor - Fuel Low Pressure

Sensor - Particulate Delta Pressure

Sensor - Particulate Filter Delta Pressure

Solenoid - Wastegate Vacuum

Switch - Deck Lid / Hatch Release

Pigtail Kit Part Number

WPT-1202

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate

Coil - Ignition

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position
