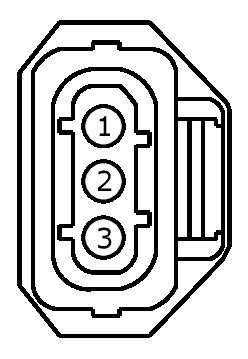

Connector End View (C1303) - FUEL RAIL PRESSURE SENSOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1303
Description
FUEL RAIL PRESSURE SENSOR
Color
none
Harness
12A690
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE238 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # FUEL PRESSURE SENSOR (SIGRTN) | |
| 2 | VE727 (BU-BN) | 20 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR | |
| 3 | LE238 (GY) | 20 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR (VREF) |
| Available Pigtail Kits | |

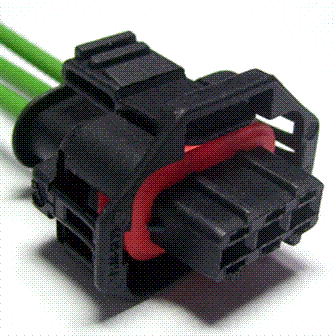

| Pigtail Kit Part Number WPT-1099 |
Service Part Number: AU2Z-14S411-BBA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses Fuel Injector Pump - Fuel Injection Sensor - Manifold Absolute Pressure (MAP) Solenoid - Fuel Volume Regulator Control |
