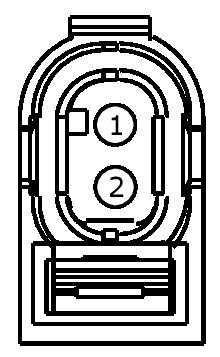

Connector End View (C1143) - FUEL INJECTOR 3
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1143
Description
FUEL INJECTOR 3
Color
BK
Harness
9F666
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE207 (VT-GY) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) | |
| 2 | RE207 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3RTN) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1371 |
Service Part Number: DU2Z-14S411-ANA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector |
