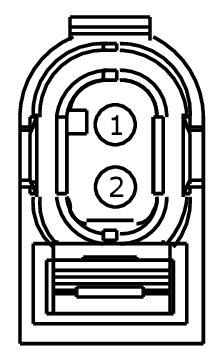

Connector End View (C1142) - FUEL INJECTOR 2
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1142
Description
FUEL INJECTOR 2
Color
BK
Harness
9F666
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE206 (GY-YE) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) | |
| 2 | RE206 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN) |

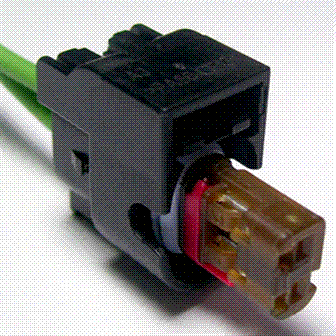

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1371 |
Service Part Number: DU2Z-14S411-ANA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector |
