Connector End View (C1104A) - GENERATOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1104A
Description
GENERATOR
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below

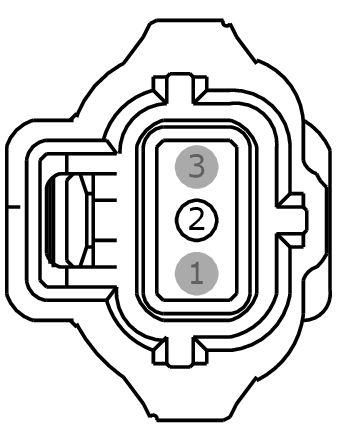

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | VDN08 (VT-BN) | 20 | CTRL MOD. - LIN BUS # ACTIVE GRILLE SHUTTER MODULE | |
| 3 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-118 |

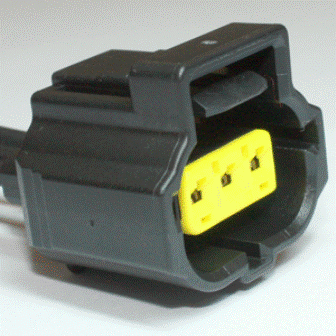

Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position |
