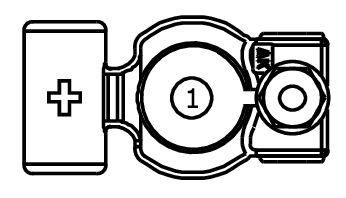

Connector End View (C1100A) - BATTERY
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1100A
Description
BATTERY
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CDC05 (WH) |
12 |
CONTROL UNIT - BATTERY # POWER OFF (BPO) |
double crimp |
| 1 |
SDC02 (RD) |
2 |
BATTERY- # PLUS |
double crimp |
