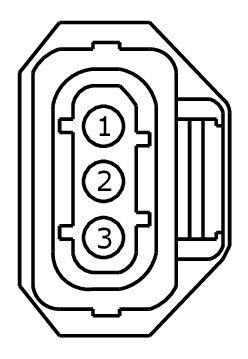

Connector End View (C1073) - FUEL RAIL PRESSURE (FRP) SENSOR

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1073

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
2	VE761 (BN-BU)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR
3	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR (VREF)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Fuel Injector

Pump - Fuel Injection

Sensor - Manifold Absolute Pressure (MAP)

Solenoid - Fuel Volume Regulator Control
