Connector End View (C609) - DOOR LATCH, RIGHT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C609
Description
DOOR LATCH, RIGHT FRONT
Color
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below

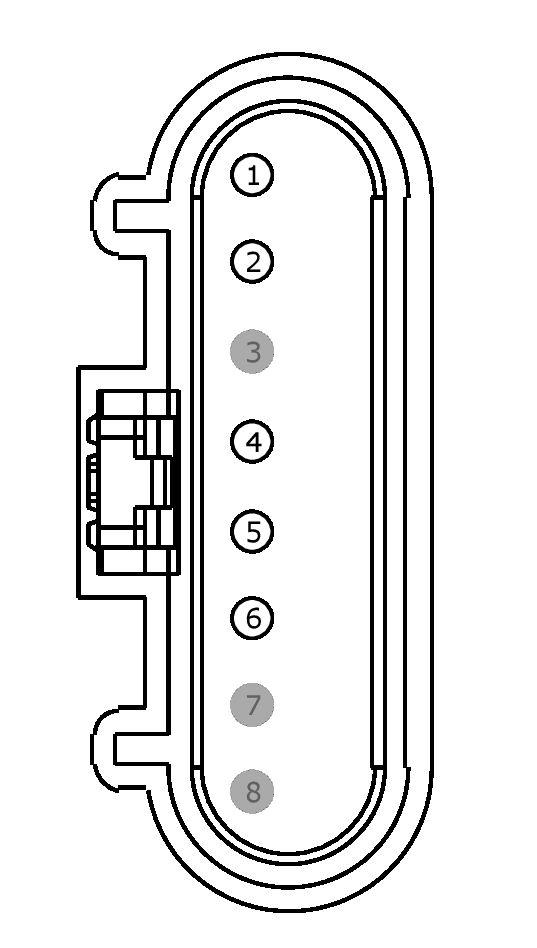

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL51 (BK) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | without door modules |
| 1 | CPL66 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER UNLOCK | with door modules |
| 2 | CPL02 (BK) | 14 | CTRL MOD. - DOOR LOCK # DRIVER LOCK | without door modules |
| 2 | CPL65 (BK) | 20 | CTRL MOD. - DOOR LOCK # PASSENGER LOCK | with door modules |
| 3 | * | * | Not Used | |
| 4 | RPL63 (BK) | 22 | CTRL MOD. - DOOR LOCK # LATCH DRIVER | without door modules |
| 4 | RPL64 (BK) | 22 | CTRL MOD. - DOOR LOCK # LATCH PASSENGER | with door modules |
| 5 | CPL35 (BU) | 22 | SWITCH - LATCH PASSENGER # UNLOCK | without door modules |
| 6 | CPL31 (BK) | 22 | SWITCH - LATCH PASSENGER # AJAR | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |

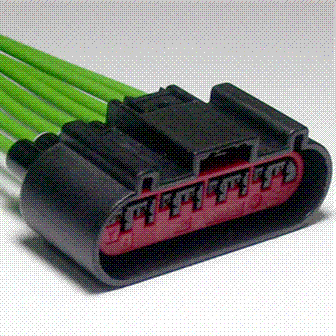

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1366 |
Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar / Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact |
