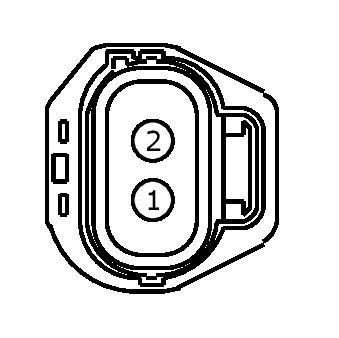

Connector End View (C608) - POWER WINDOW MOTOR, PASSENGER SIDE FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C608
Description
POWER WINDOW MOTOR, PASSENGER SIDE FRONT
Color
BK
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW00 (BN-GN) | 12 | WINDOW MOTOR UP DRIVER | without door modules |
| 2 | CPW00 (WH-VT) | 12 | WINDOW MOTOR DOWN DRIVER | without door modules |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1245 |
Service Part Number: BU2Z-14S411-BLA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - RH - Front |
