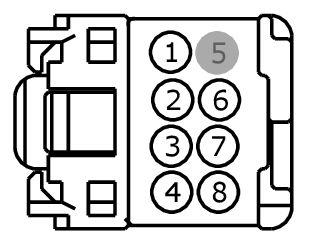

Connector End View (C566B) - MASTER WINDOW CONTROL SWITCH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C566B
Description
MASTER WINDOW CONTROL SWITCH
Color
BK
Harness
14A584
Base Part #
14489
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPM00 (BN-GN) | 20 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 2 | CPM00 (BK-VT) | 20 | RIGHT REAR VIEW MIRROR LEFT/RIGHT DRIVER | |
| 3 | CPM00 (BN-GN) | 20 | RIGHT REAR VIEW MIRROR COMMON RETURN | |
| 4 | CPM00 (VT-GN) | 20 | RIGHT REAR VIEW MIRROR UP/DOWN DRIVER | |
| 5 | * | * | Not Used | |
| 6 | CPM00 (GY-OG) | 22 | LEFT REAR VIEW MIRROR LEFT/RIGHT DRIVER | |
| 7 | CPM00 (BK-VT) | 22 | LEFT REAR VIEW MIRROR COMMON RETURN | |
| 8 | CPM00 (BN-GN) | 22 | LEFT REAR VIEW MIRROR UP/DOWN DRIVER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-995 |
Service Part Number: 3U2Z-14S411-BGB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Center Stack (Multipurpose) Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Multifunction (Wiper) Switch - Seat (3rd Row) Switch - Third Row Power Folding Seat Switch - Traction Control |
