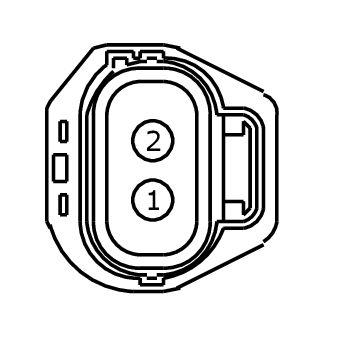

Connector End View (C540) - POWER WINDOW MOTOR, DRIVER SIDE FRONT

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C540

Description

POWER WINDOW MOTOR, DRIVER SIDE FRONT

Color

Harness

14A584

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW00 (BN-GN)	12	WINDOW MOTOR UP DRIVER	without door modules and rear power windows
1	VPW39 (BU-WH)	12	WINDOW MOTOR UP DRIVER	without door modules, with rear power windows
2	CPW00 (WH-VT)	12	WINDOW MOTOR DOWN DRIVER	without door modules and rear power windows
2	RPW37 (VT-GN)	12	WINDOW MOTOR DOWN DRIVER	without door modules, with rear power windows

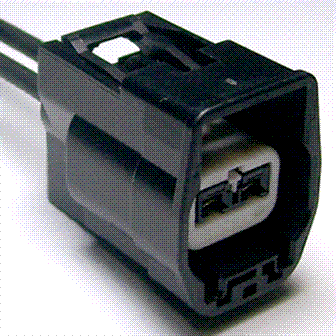

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1245

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BLA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Power Window - LH - Front

Motor - Power Window - RH - Front
