Connector End View (C523) - SPEAKER, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

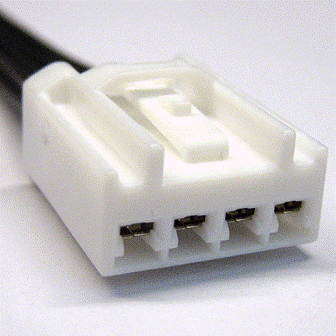

Connector: C523
Description
SPEAKER, LEFT FRONT
Color
NA
Harness
14A584
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME07 (BK) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | RME07 (BK) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-912 |
Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety |
