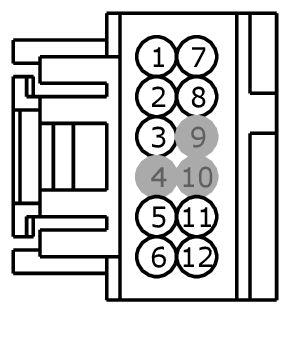

Connector End View (C521) - EXTERIOR REAR VIEW MIRROR, LEFT

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C521

Description

EXTERIOR REAR VIEW MIRROR, LEFT

Color

Harness

14A584

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPM00 (GY-OG)	22	CTRL MOD. - LEFT MIRROR RIGHT	without door modules
1	CPM29 (GN)	22	CTRL MOD. - LEFT MIRROR UP	with door modules
2	CPM00 (BK-VT)	22	CTRL MOD. - LEFT MIRROR UP	without door modules and with rear power windows
2	CPM03 (BU-WH)	22	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT	with door modules
2	CPW00 (BK-VT)	20	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT	without door modules and without rear power windows
3	CPM00 (BN-GN)	22	CTRL MOD. - LEFT MIRROR UP	without door modules
3	CPM28 (BU-BN)	22	CTRL MOD. - LEFT MIRROR RIGHT	with door modules
4	*	*	Not Used
5	CPM00 (BN-GN)	18	CTRL MOD. - HEATER MIRROR LEFT	without door modules and with rear power windows
5	CRD13 (GN-VT)	22	CTRL MOD. - HEATER MIRROR LEFT	with door modules
6	CPM00 (BK)	20	CTRL MOD. - LEFT MIRROR RETURN	without door modules and with rear power windows
6	RPM05 (VT-GN)	22	CTRL MOD. - LEFT MIRROR RETURN	with door modules
7	CLS22 (GN-BN)	22	CTRL MOD. - TURN LAMP LEFT MIRROR	with door modules
7	CPM00 (GY-OG)	18	CTRL MOD. - TURN LAMP LEFT MIRROR	without door modules and with rear power windows
8	CLN31 (VT-GN)	22	CTRL MOD. - PUDDLE LAMP LEFT	with door modules
9	*	*	Not Used
10	*	*	Not Used
11	GD134 (BK-VT)	22	GROUND
12	CLS28 (BK-BU)	22	CTRL MOD. - DRIVER DOOR

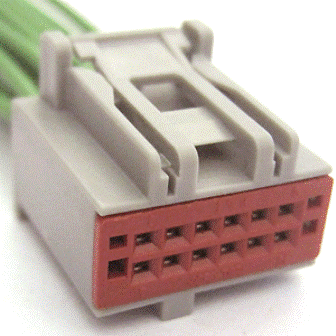

Available Pigtail Kits

Pigtail Kit Part Number

WPT-949

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BMAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Control - Navigation Display

Module - Driver Door

Module - Front Interface

Monitor - Video/DVD

Switch - Gear Shift Select/Neutral Safety
