Connector End View (C511) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C511
Description
Inline
Color
GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14A584
FEMALE
Harness 14D624
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLN17 (BU-WH) | 20 | |
| 2 | CBP17 (BN-GN) | 20 | |
| 3 | RLF26 (BK) | 22 | 14A584 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLN17 (BU-WH) | 20 | |
| 2 | CBP17 (BN-GN) | 20 | |
| 3 | RLF26 (BK) | 22 | 14D624 |
| Available Pigtail Kits | |

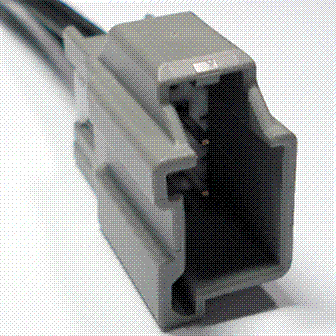

| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |

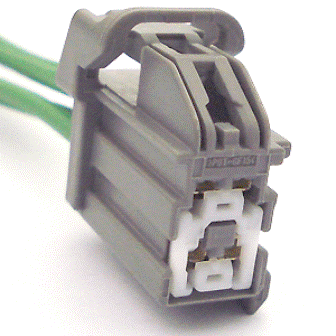

| Pigtail Kit Part Number WPT-977 |
Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses: Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS) |
