Connector End View (C505) - DRIVER DOOR LOCK CONTROL SWITCH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C505
Description
DRIVER DOOR LOCK CONTROL SWITCH
Color
none
Harness
14A584
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL77 (BU-GN) | 20 | CTRL MOD. - PASSENGER DOOR LOCK SW ILLU. | |
| 2 | CPL42 (GY-YE) | 20 | SWITCH - TRIM DOOR LOCK | |
| 3 | RPL61 (WH) | 20 | GROUND - PASSENGER DOOR | |
| 4 | CPL43 (VT-GY) | 20 | SWITCH - TRIM DOOR LOCK (DRIVER) - UNLOCK | |
| 5 | CPL87 (BN) | 20 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER |

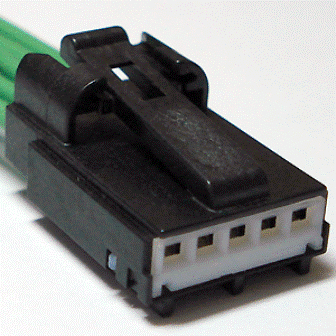

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-983 |
Service Part Number: 6U2Z-14S411-SB Gauge: 18 Pin material: Silver Cavities: 5 Vehicle Uses Module - Heads Up Display Switch - Overdrive Cancel Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) |
