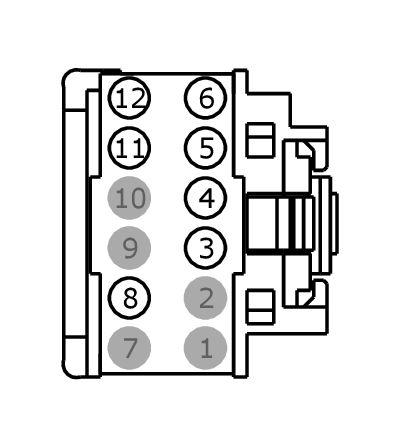

Connector End View (C504C) - MASTER WINDOW CONTROL SWITCH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C504C
Description
MASTER WINDOW CONTROL SWITCH
Color
BK
Harness
14A584
Base Part #
14489
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPW00 (BK-VT) | 22 | LEFT REAR VIEW MIRROR COMMON RETURN | |
| 4 | CPW00 (BN-GN) | 20 | RIGHT REAR VIEW MIRROR COMMON RETURN | |
| 5 | CPM00 (GY-OG) | 22 | LEFT REAR VIEW MIRROR COMMON LEFT/RIGHT DRIVER | |
| 6 | CPM00 (BK-VT) | 20 | RIGHT REAR VIEW MIRROR COMMON LEFT/RIGHT DRIVER | |
| 7 | * | * | Not Used | |
| 8 | CPW04 (YE) | 20 | FUSE OR CIRCUIT BREAKER | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CPM00 (VT-BN) | 20 | RIGHT REAR VIEW MIRROR UP/DOWN DRIVER | |
| 12 | CPM00 (BN-GN) | 22 | LEFT REAR VIEW MIRROR UP/DOWN DRIVER |

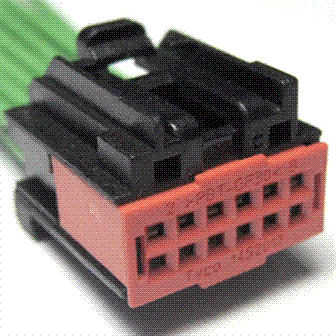

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1166 |
Service Part Number: BU2Z-14S411-UA Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses Clockspring |
