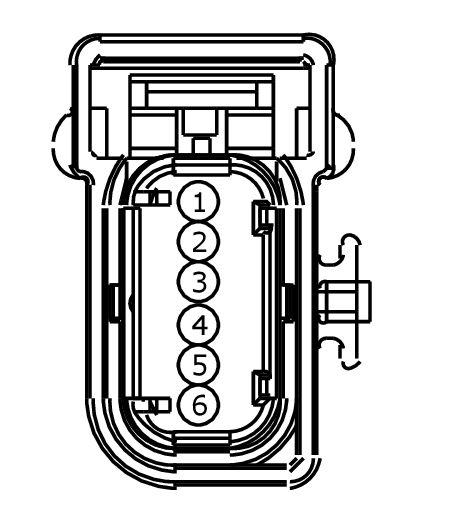

Connector End View (C500) - KEYPAD SWITCH ASSEMBLY
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C500
Description
KEYPAD SWITCH ASSEMBLY
Color
Harness
14A584
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP11 (BU-RD) | 20 | FUSE OR CIRCUIT BREAKER | |
| 2 | CPK28 (WH-GN) | 20 | CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION | |
| 3 | CPK29 (GY-BU) | 20 | SWITCH - KEYLESS KEYPAD LINE A | |
| 4 | CPK30 (VT-GN) | 18 | SWITCH - KEYLESS KEYPAD LINE B | |
| 5 | CPK31 (YE-GN) | 20 | SWITCH - KEYLESS KEYPAD LINE C | |
| 6 | GD134 (BK-VT) | 20 | GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT |

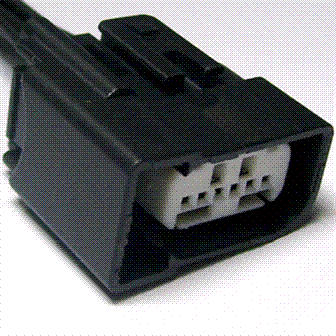

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
