Connector End View (C438) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C438
Description
Inline
Color
GY
Base Part #
Service Pigtail
See Below

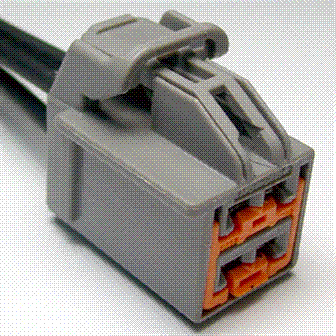

MALE
Harness 14014

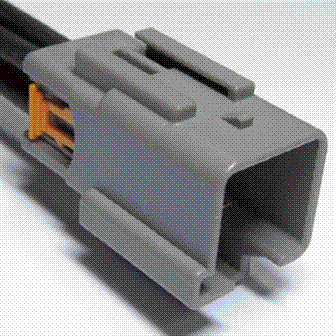

FEMALE
Harness 14014
| Pin | Circuit | Gauge | Qualifier |
| 1 | VME12 (BN-WH) | 18 | |
| 2 | RME12 (BN-BU) | 18 | |
| 3 | SME23 (VT-RD) | 12 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | VME12 (BN-WH) | 18 | |
| 2 | RME12 (BN-BU) | 18 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1143 |
Service Part Number: AU2Z-14S411-BPA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses: Switch - Seat Lumbar |
| Pigtail Kit Part Number WPT-1260 |
Service Part Number: CU2Z-14S411-JA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses: Connector - Inline Motor - Power Folding Seat Switch - Power Window - Driver |
