Connector End View (C432) - INLINE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

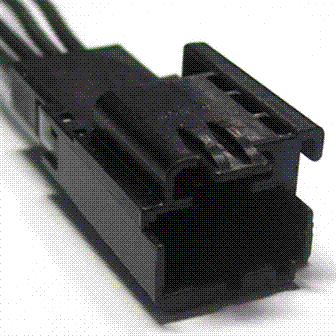

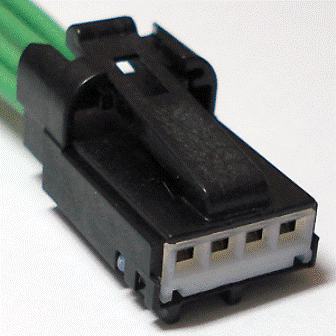

Inline C432
Description
INLINE
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 14401
FEMALE
Harness 14B242
| Pin | Circuit | Gauge | Qualifier |
| 1 | CHS77 (GN-VT) | 22 | |
| 2 | CHS76 (BN-VT) | 22 | |
| 3 | RHS72 (YE-GY) | 18 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CHS77 (GN-VT) | 22 | |
| 2 | CHS76 (BN-VT) | 22 | |
| 3 | RHS72 (YE-GY) | 18 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1041 |
Service Part Number: 9U2Z-14S411-AJA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses: Actuator - Door Lock - Decklid/Liftgate Switch - Deck Lid / Lift Gate Ajar |
| Pigtail Kit Part Number WPT-982 |
Service Part Number: 6U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses: Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH) |
