Connector End View (C426) - WHEEL SPEED SENSOR, RIGHT REAR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C426
Description
WHEEL SPEED SENSOR, RIGHT REAR
Color
BK
Harness
2C055
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VCA04 (BU) | 20 | SENSOR - WHEEL SPEED RIGHT REAR | |
| 2 | RCA18 (BN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR |

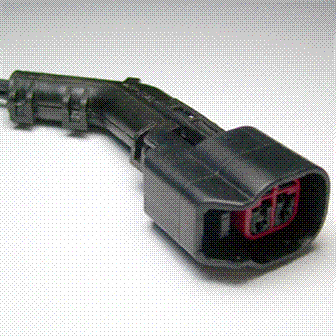

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1246 |
Service Part Number: BU2Z-14S411-RA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Sensor - Speed |
