Connector End View (C402B) - REAR WINDOW DEFROST GRID
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C402B
Description
REAR WINDOW DEFROST GRID
Color
Harness
17N400
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD150 (BK-WH) | 12 | GROUND - PILLAR D LEFT # 2ND STUD |
| Available Pigtail Kits | |

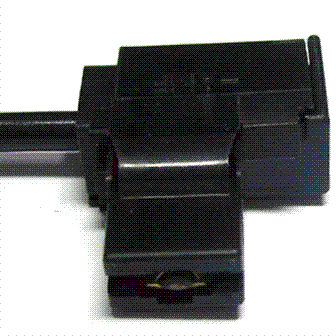

| Pigtail Kit Part Number WPT-1022 |
Service Part Number: 3U2Z-14S411-DXAB Gauge: 12 Pin material: Tin Cavities: 1 Vehicle Uses Switch - Heated Back Light (Rear Defrost) Switch - Park Brake Terminal - Rear Window Defroster Grid |
