Connector End View (C368) - DRIVER SEAT RECLINER MOTOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C368
Description
DRIVER SEAT RECLINER MOTOR
Color
BK
Harness
14D232
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS07 (GY-BN) | 14 | CTRL MOD. - DRIVER SEAT RECLINE INCLINE | |
| 2 | VPS12 (GY-OG) | 20 | SENSOR - DRIVER SEAT RECLINE | |
| 3 | CPS08 (VT-OG) | 14 | CTRL MOD. - DRIVER SEAT RECLINE RECLINE | |
| 4 | RPS12 (YE-VT) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - |

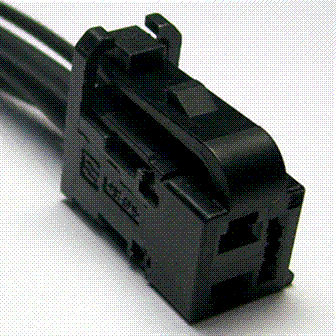

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1311 |
Service Part Number: CU2Z-14S411-BAA Gauge: 20 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Seat Height (Front) Motor - Seat Recline |
