Connector End View (C362) - DRIVER SEAT HORIZONTAL MOTOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C362
Description
DRIVER SEAT HORIZONTAL MOTOR
Color
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS23 (GN-VT) | 14 | DRIVER SEAT HORIZONTAL MOTOR FORWARD | |
| 2 | * | * | Not Used | |
| 3 | CPS28 (GN) | 14 | DRIVER SEAT HORIZONTAL MOTOR BACK | |
| 4 | * | * | Not Used |

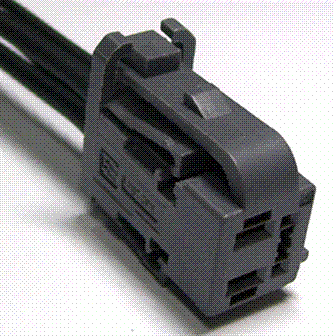

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1350 |
Service Part Number: DU2Z-14S411-UA Gauge: 16 20 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) |
