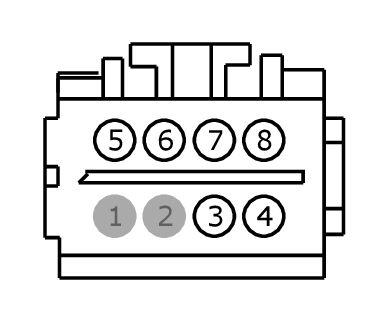

Connector End View (C359) - HEATED SEAT MODULE, DRIVER SIDE FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C359
Description
HEATED SEAT MODULE, DRIVER SIDE FRONT
Color
BU
Harness
14D231
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD903 (BK-WH) | 18 | GROUND - PASSENGER SEAT # SEAT SWITCH | |
| 5 | CBX01 (GN-RD) | 18 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 6 | CHS29 (WH-BU) | 20 | SWITCH - SEAT HEATER FRONT DRIVER SIDE | |
| 7 | CHS02 (YE-BU) | 18 | CTRL MOD. - DRIVER HEATER FEED | |
| 8 | * | * | Not Used |
