Connector End View (C339) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C339
Description
Inline
Color
Base Part #
Service Pigtail
Not Available

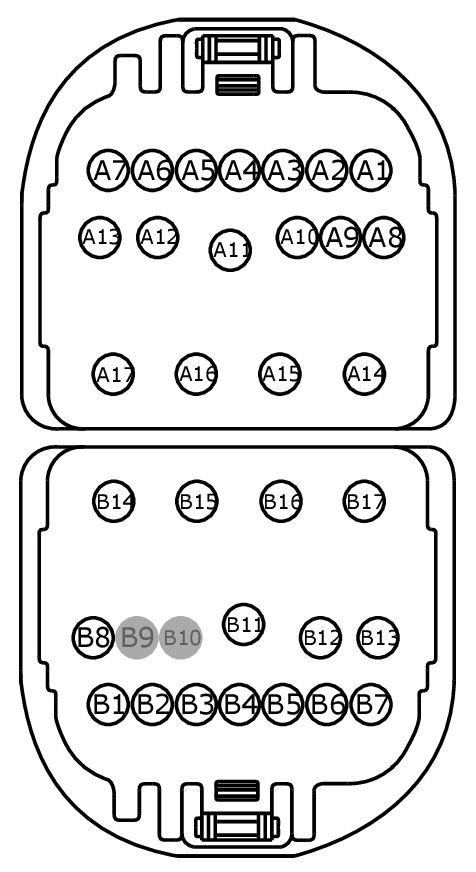

MALE
Harness 14A584

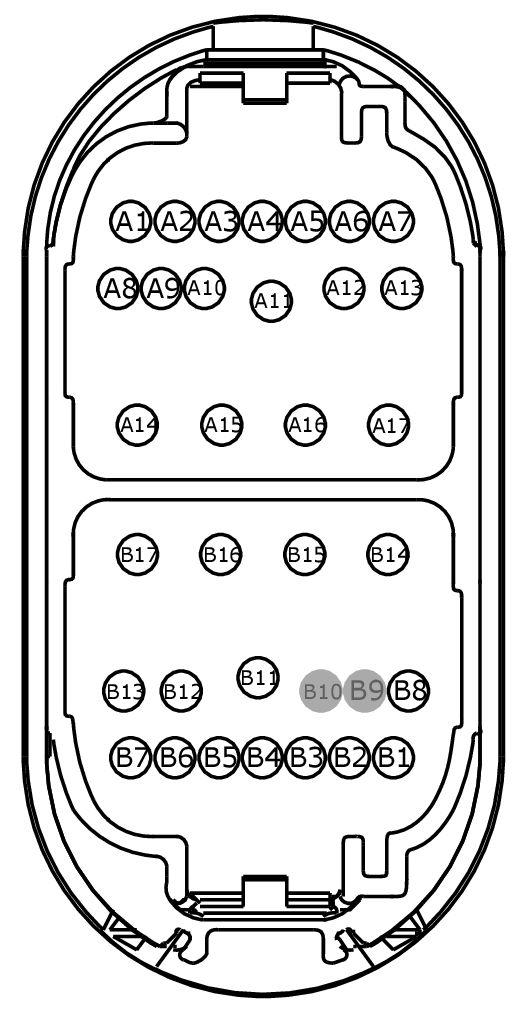

FEMALE
Harness 14014
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPK19 (BU-GN) | 20 | 14A584 - with IA |
| A1 | CPM00 (BN-GN) | 20 | 14A584 - without door modules and without rear power windows |
| A1 | CPW00 (BN-GN) | 20 | 14A584 - without door modules and with rear power windows |
| A2 | CPK29 (GY-BU) | 20 | 14A584 - with IA |
| A2 | CPM00 (VT-BN) | 20 | 14A584 - without door modules and with rear power windows |
| A2 | CPM00 (VT-GN) | 20 | 14A584 - without door modules and without rear power windows |
| A3 | CBP17 (BK) | 20 | 14A584 - with door modules |
| A3 | CPM00 (BK-VT) | 20 | without door modules |
| A4 | CPK15 (GN-WH) | 20 | 14A584 - with door modules |
| A4 | CPM00 (GY-OG) | 18 | without door modules |
| A5 | CPM00 (BN-GN) | 18 | 14A584 - without door modules |
| A5 | GD150 (BK-WH) | 20 | 14A584 - with door modules |
| A6 | CPK12 (GN-BN) | 20 | 14A584 - with IA |
| A6 | CPL30 (GN-VT) | 20 | 14A584 - without door modules |
| A7 | CPK23 (YE-VT) | 20 | 14A584 |
| A7 | CPL77 (BU-GN) | 20 | 14A584 - without door modules |
| A8 | CPK12 (YE) | 20 | 14A584 |
| A8 | CPL43 (VT-GY) | 20 | 14A584 - without door modules |
| A9 | CPK28 (WH-BN) | 20 | 14A584 |
| A9 | CPL42 (GY-YE) | 20 | 14A584 - without door modules |
| A10 | CPK31 (YE-GN) | 20 | 14A584 |
| A10 | CPL87 (BN) | 20 | 14A584 - without door modules |
| A11 | CPK30 (VT-GN) | 18 | 14A584 |
| A11 | CPW35 (GN) | 12 | 14A584 - without door modules |
| A12 | CPL51 (BK) | 14 | 14A584 - without door modules |
| A12 | VDB06 (BK) | 20 | 14A584 - with door modules |
| A13 | CPM00 (BN-GN) | 20 | 14A584 - without door modules and without rear power windows |
| A13 | CPW04 (YE) | 20 | 14A584 - without door modules and with rear power windows |
| A13 | VDB07 (BK) | 20 | 14A584 - with door modules |
| A14 | CPW00 (BN-YE) | 12 | 14A584 - without door modules and without rear power windows |
| A14 | CPW34 (BU) | 12 | 14A584 - without door modules and with rear power windows |
| A14 | SBR01 (BK) | 12 | 14A584 - with door modules |
| A15 | CPW00 (BN-GN) | 12 | 14A584 - without door modules and with rear power windows |
| A15 | LPW36 (WH-BN) | 12 | 14A584 - without door modules |
| A16 | CPW00 (WH-VT) | 12 | 14A584 - without door modules and with rear power windows |
| A16 | VPW32 (BK) | 20 | 14A584 - with door modules |
| A16 | VPW38 (YE-BU) | 12 | 14A584 - without door modules |
| A17 | CPW15 (YE) | 12 | 14A584 - without door modules |
| B1 | CPL26 (BK) | 20 | 14A584 |
| B2 | VME07 (BK) | 18 | 14A584 |
| B3 | RME07 (BK) | 18 | 14A584 |
| B4 | VME11 (VT-OG) | 18 | |
| B5 | RME11 (YE-OG) | 18 | |
| B6 | CR153 (GY-YE) | 20 | 14A584 |
| B7 | RR153 (YE-VT) | 20 | |
| B8 | SBP11 (BU-RD) | 20 | 14A584 - with IA |
| B9 | * | * | |
| B10 | * | * | |
| B11 | GD134 (BK-VT) | 12 | 14A584 |
| B11 | RPL63 (BK) | 12 | 14A584 |
| B12 | CPL02 (BK) | 14 | 14A584 - without door modules |
| B12 | CPL77 (BU-GN) | 20 | 14A584 - with door modules |
| B13 | CPL43 (VT-GY) | 20 | 14A584 - with door modules |
| B14 | CPW16 (BU-OG) | 12 | 14A584 - without door modules |
| B15 | RPW09 (BN-WH) | 12 | 14A584 - without door modules |
| B16 | CPL42 (GY-YE) | 18 | 14A584 - with door modules |
| B16 | CPW17 (BN-GN) | 12 | 14A584 - without door modules |
| B17 | CPL87 (BN) | 18 | 14A584 - with door modules |
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPK19 (BU-GN) | 22 | 14014 - with door modules |
| A1 | CPM00 (BN-GN) | 22 | 14014 - without door modules |
| A2 | CPK29 (GY-BU) | 20 | 14014 - with door modules |
| A2 | CPM00 (VT-GN) | 22 | 14014 - without door modules |
| A3 | CBP17 (BN-GN) | 22 | 14014 - with door modules |
| A3 | CPM00 (BK-VT) | 20 | without door modules |
| A4 | CPK15 (GN-WH) | 22 | 14014 - with door modules |
| A4 | CPM00 (GY-OG) | 18 | without door modules |
| A5 | CPM00 (BN-GN) | 18 | 14014 - without door modules |
| A5 | GD150 (BK) | 22 | 14014 - with door modules |
| A6 | CPL30 (GN-VT) | 22 | 14014 - without door modules |
| A6 | RPK03 (GN-BN) | 22 | 14014 - with door modules |
| A7 | CPK23 (YE-VT) | 22 | 14014 - with door modules |
| A7 | CPL77 (BU-GN) | 20 | 14014 - without door modules |
| A8 | CPL43 (VT-GY) | 20 | 14014 - without door modules |
| A8 | VPK03 (YE) | 22 | 14014 - with door modules |
| A9 | CPK28 (WH-GN) | 20 | 14014 - with door modules |
| A9 | CPL42 (GY-YE) | 20 | 14014 - without door modules |
| A10 | CPK31 (YE-GN) | 20 | 14014 |
| A10 | CPL87 (BN) | 20 | 14014 - without door modules |
| A11 | CPK30 (VT-GN) | 20 | 14014 - with door modules |
| A11 | CPW35 (GN) | 12 | 14014 - without door modules |
| A12 | CPL51 (WH-OG) | 14 | 14014 - without door modules |
| A12 | VDB06 (GY-OG) | 22 | 14014 - with door modules |
| A13 | CPM00 (BN-GN) | 20 | 14014 |
| A13 | VDB07 (VT-OG) | 22 | 14014 - with door modules |
| A14 | CBB00 (BN-YE) | 12 | 14014 - without door modules |
| A14 | SBR01 (RD) | 12 | 14014 - with door modules |
| A15 | CBB00 (BN-GN) | 12 | 14014 |
| A16 | CBB00 (WH-VT) | 12 | 14014 - without door modules |
| A16 | VPW32 (GY-BU) | 22 | 14014 - with door modules |
| A17 | CPW15 (YE) | 12 | 14014 - without door modules |
| B1 | CPL26 (GN-VT) | 22 | 14014 |
| B2 | VME07 (WH) | 18 | 14014 |
| B3 | RME07 (WH-BN) | 18 | 14014 |
| B4 | VME11 (VT-OG) | 18 | |
| B5 | RME11 (YE-OG) | 18 | |
| B6 | CR153 (GN-WH) | 20 | 14014 |
| B7 | RR153 (YE-VT) | 20 | |
| B8 | SBP11 (BU-RD) | 20 | 14014 |
| B9 | * | * | |
| B10 | * | * | |
| B11 | GD134 (BK-VT) | 12 | 14014 |
| B12 | CPL02 (GY-BN) | 14 | 14014 - without door modules |
| B12 | CPL77 (BU-GN) | 20 | 14014 - with door modules |
| B13 | CPL43 (VT-GY) | 20 | 14014 |
| B14 | CPW16 (BU-OG) | 12 | 14014 |
| B15 | RPW09 (BN-WH) | 12 | 14014 |
| B16 | CPL42 (GY-YE) | 20 | 14014 - with door modules |
| B16 | CPW17 (BN-GN) | 12 | 14014 - without door modules |
| B17 | CPL87 (BN) | 20 | 14014 - with door modules |
