Connector End View (C335) - SEAT BACKREST HEATER MAT, RIGHT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C335
Description
SEAT BACKREST HEATER MAT, RIGHT FRONT
Color
none
Harness
14D233
Base Part #
14A459
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS01 (GY-VT) | 16 | CTRL MOD. - DRIVER HEATER FEED | |
| 2 | RHS01 (GY-VT) | 16 | GROUND |

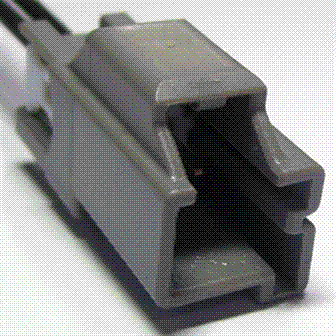

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1078 |
Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar |
