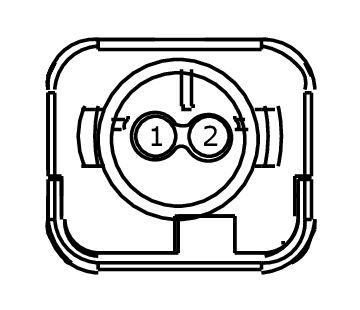

Connector End View (C323) - SAFETY BELT RETRACTOR PRETENSIONER, DRIVER
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C323
Description
SAFETY BELT RETRACTOR PRETENSIONER, DRIVER
Color
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RR120 (BN-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE, RETURN | |
| 2 | CR120 (BU-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1228 |
Service Part Number: BU2Z-14S411-BMA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain |
