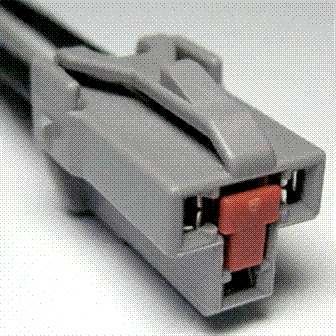

Connector End View (C319) - CIGAR LIGHTER, FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C319
Description
CIGAR LIGHTER, FRONT
Color
OG
Harness
15K857
Base Part #
14489
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP19 (BN-WH) | 12 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD138 (BN-WH) | 12 | GROUND - COWL SIDE/PILLAR A RIGHT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1160 |
Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point |
