Connector End View (C314) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C314
Description
Inline
Color
Base Part #

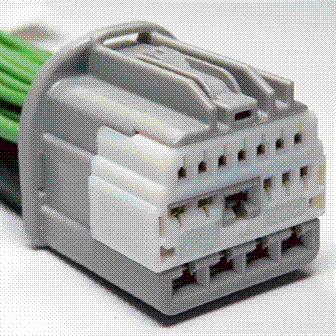

Service Pigtail
See Below

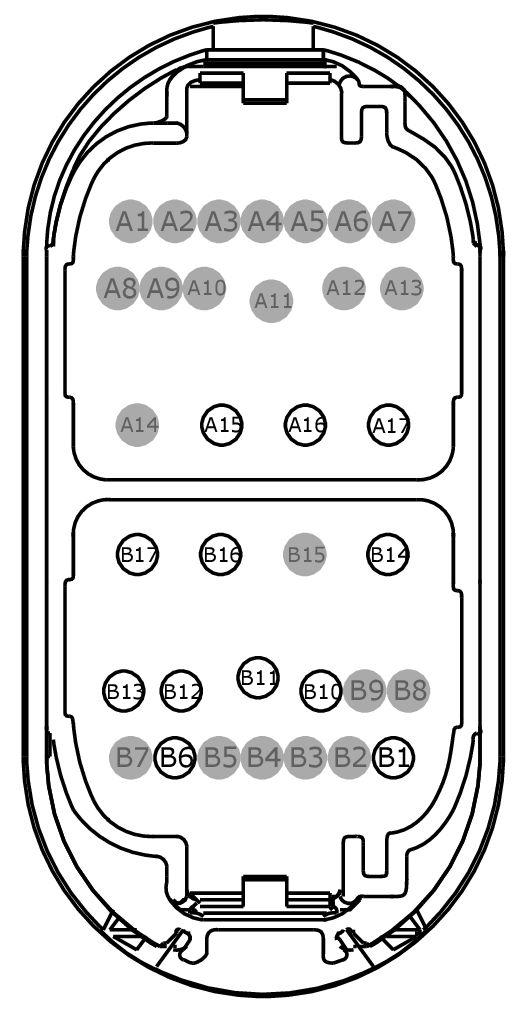

MALE
Harness 14240

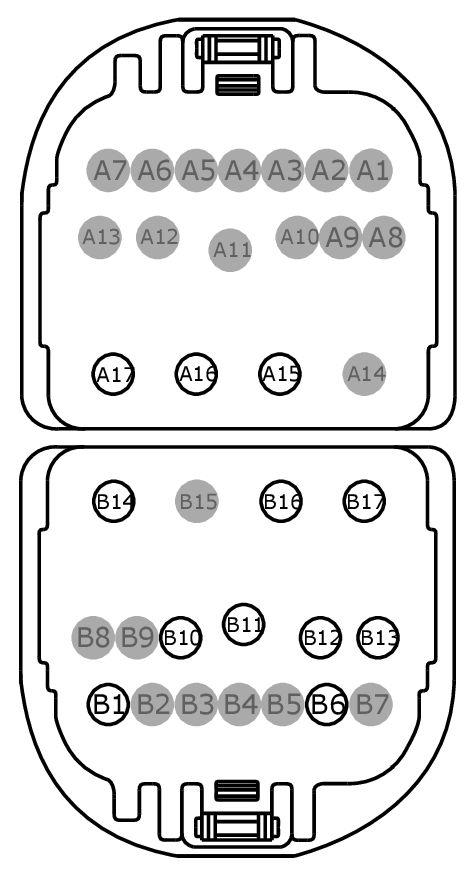

FEMALE
Harness 14014
| Pin | Circuit | Gauge | Qualifier |
| A1 | * | * | |
| A2 | * | * | |
| A3 | * | * | |
| A4 | * | * | |
| A5 | * | * | |
| A6 | * | * | |
| A7 | * | * | |
| A8 | * | * | |
| A9 | * | * | |
| A10 | * | * | |
| A11 | * | * | |
| A12 | * | * | |
| A13 | * | * | |
| A14 | * | * | |
| A15 | CPW23 (GY) | 12 | 14240 |
| A16 | CPW24 (WH-VT) | 12 | 14240 |
| A17 | RPW09 (BN-WH) | 12 | |
| B1 | CPL39 (YE) | 22 | |
| B2 | * | * | |
| B3 | * | * | |
| B4 | * | * | |
| B5 | * | * | |
| B6 | CPL41 (GN-BU) | 20 | 14240 - without door modules |
| B6 | VPW33 (VT-BN) | 20 | 14240 - with door modules |
| B7 | * | * | |
| B8 | * | * | |
| B9 | * | * | |
| B10 | GD140 (BK-GN) | 20 | without door module, right rear |
| B11 | GD140 (BK-GN) | 12 | with door module, right rear |
| B12 | RME12 (BN-BU) | 14 | 14240 |
| B13 | VME12 (BN-WH) | 14 | 14240 |
| B14 | CPL11 (GY-BN) | 14 | |
| B15 | * | * | |
| B16 | CPL53 (WH-OG) | 14 |
| Pin | Circuit | Gauge | Qualifier |
| A1 | * | * | |
| A2 | * | * | |
| A3 | * | * | |
| A4 | * | * | |
| A5 | * | * | |
| A6 | * | * | |
| A7 | * | * | |
| A8 | * | * | |
| A9 | * | * | |
| A10 | * | * | |
| A11 | * | * | |
| A12 | * | * | |
| A13 | * | * | |
| A14 | * | * | |
| A15 | CPW17 (BN-GN) | 12 | 14014 |
| A16 | CPW18 (GY-VT) | 12 | 14014 |
| A17 | RPW09 (BN-WH) | 12 | |
| B1 | CPL39 (YE) | 22 | |
| B2 | * | * | |
| B3 | * | * | |
| B4 | * | * | |
| B5 | * | * | |
| B6 | CPL41 (GN-BU) | 22 | without door module, right rear |
| B6 | VPW33 (VT-BN) | 22 | with door module, right rear |
| B7 | * | * | |
| B8 | * | * | |
| B9 | * | * | |
| B10 | GD140 (BK-GN) | 20 | without door module, right rear |
| B11 | GD140 (BK-GN) | 12 | with door module, right rear |
| B12 | RME12 (BN-BU) | 18 | 14014 |
| B13 | VME12 (BN-WH) | 18 | 14014 |
| B14 | CPL11 (GY-BN) | 14 | |
| B15 | * | * | |
| B16 | CPL53 (WH-OG) | 14 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1519 |
Service Part Number: JU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 17 Vehicle Uses: Connector - Inline |
