Connector End View (C313) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C313
Description
Inline
Color
Base Part #
Service Pigtail
See Below

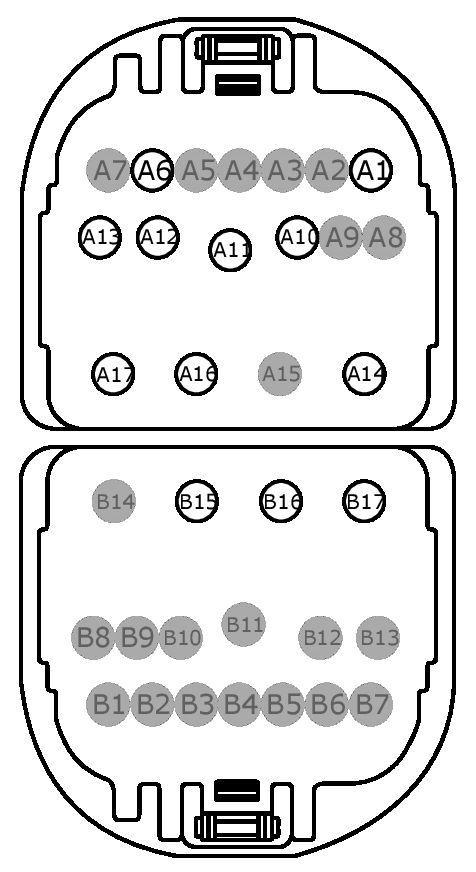

MALE
Harness 14240

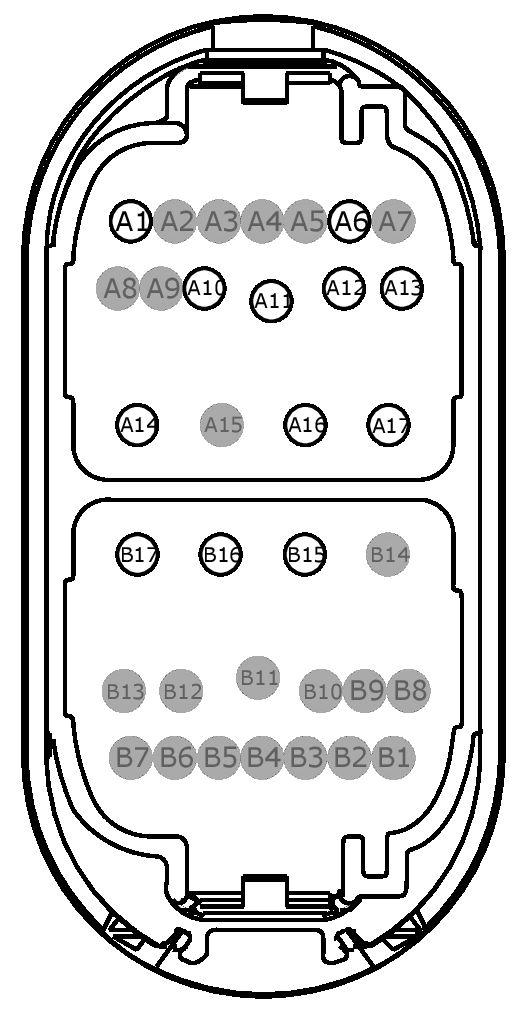

FEMALE
Harness 14014
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPL36 (GN) | 20 | 14240 |
| A2 | * | * | |
| A3 | * | * | |
| A4 | * | * | |
| A5 | * | * | |
| A6 | CPL38 (VT) | 20 | 14240 - without door modules |
| A6 | VPW32 (GY-BU) | 20 | 14240 - with door modules |
| A7 | * | * | |
| A8 | * | * | |
| A9 | * | * | |
| A10 | GD134 (BK-VT) | 20 | 14240 - without power/heated seats |
| A11 | GD134 (BK-VT) | 12 | 14240 - with power/heated seats |
| A12 | RME09 (BN-YE) | 14 | 14240 |
| A13 | VME09 (WH-GN) | 14 | 14240 |
| A14 | CPL11 (GY-BN) | 14 | |
| A15 | * | * | |
| A16 | CPL53 (WH-OG) | 14 | |
| A17 | SBR03 (BU-RD) | 12 | |
| B1 | * | * | |
| B2 | * | * | |
| B3 | * | * | |
| B4 | * | * | |
| B5 | * | * | |
| B6 | * | * | |
| B7 | * | * | |
| B8 | * | * | |
| B9 | * | * | |
| B10 | * | * | |
| B11 | * | * | |
| B12 | * | * | |
| B13 | * | * | |
| B14 | * | * | |
| B15 | CPW21 (BN) | 12 | 14240 |
| B16 | CPW22 (GN-VT) | 12 | 14240 |
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPL36 (GN) | 22 | 14014 |
| A2 | * | * | |
| A3 | * | * | |
| A4 | * | * | |
| A5 | * | * | |
| A6 | CPL38 (VT) | 22 | 14014 - without door modules |
| A6 | VPW32 (GY-BU) | 22 | 14014 - with door modules |
| A7 | * | * | |
| A8 | * | * | |
| A9 | * | * | |
| A10 | GD134 (BK-VT) | 20 | 14014 - without power/heated seats |
| A11 | GD134 (BK-VT) | 12 | with power/heated seats |
| A12 | RME09 (BN-YE) | 18 | 14014 |
| A13 | VME09 (WH-GN) | 18 | 14014 |
| A14 | CPL11 (GY-BN) | 14 | |
| A15 | * | * | |
| A16 | CPL53 (WH-OG) | 14 | |
| A17 | SBR06 (BU-RD) | 12 | |
| B1 | * | * | |
| B2 | * | * | |
| B3 | * | * | |
| B4 | * | * | |
| B5 | * | * | |
| B6 | * | * | |
| B7 | * | * | |
| B8 | * | * | |
| B9 | * | * | |
| B10 | * | * | |
| B11 | * | * | |
| B12 | * | * | |
| B13 | * | * | |
| B14 | * | * | |
| B15 | CPW15 (YE) | 12 | 14014 |
| B16 | CPW16 (BU-OG) | 12 | 14014 |

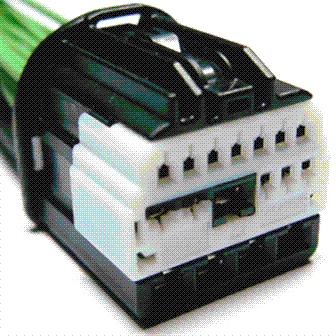

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1517 |
Service Part Number: JU2Z-14S411-PA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 17 Vehicle Uses: Connector - Inline |
