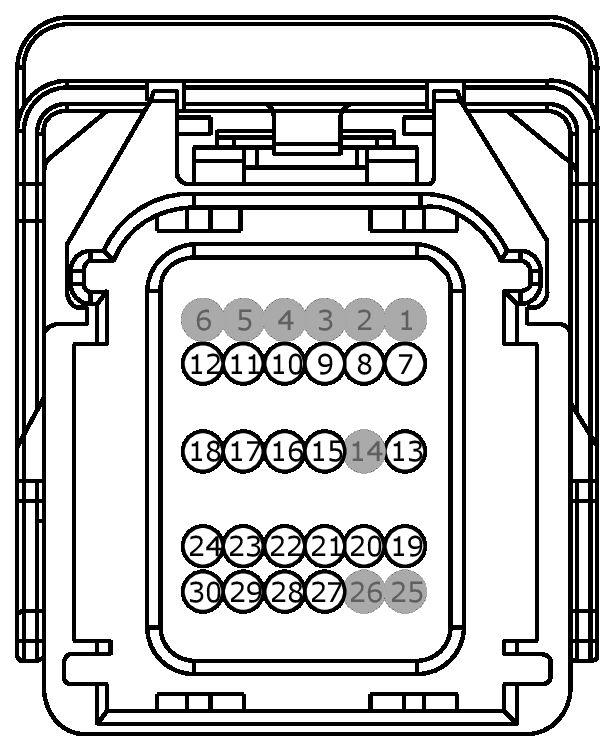

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C310A

Description

RESTRAINTS CONTROL MODULE (RCM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +
8	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -
9	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -
10	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +
11	CR105 (GN-BU)	20	CTRL MOD. - PASSENGER AIR BAG CANISTER VENT
12	RR105 (GY-YE)	20	CTRL MOD. - PASSENGER AIR BAG CANISTER VENT
13	CBP02 (GN)	22	FUSE OUTPUT OR CIRCUIT BREAKER
14	*	*	Not Used
15	RRP02 (GN-BN)	20	RIGHT FRONT IMPACT SENSOR RETURN
16	VRP02 (BN-VT)	20	RIGHT FRONT IMPACT SENSOR FEED
17	VRP01 (WH-GN)	20	LEFT FRONT IMPACT SENSOR FEED
18	RRP01 (VT-WH)	20	LEFT FRONT IMPACT SENSOR RETURN
19	CBP02 (GN)	20	FUSE OUTPUT OR CIRCUIT BREAKER
20	CR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 RETURN
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2
23	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2
24	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 RETURN
25	*	*	Not Used
26	*	*	Not Used
27	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 RETURN
28	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1RETURN
