Connector End View (C293) - BLOWER MOTOR RESISTOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C293
Description
BLOWER MOTOR RESISTOR
Color
GY
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CH428 (GN-WH) | 14 | SWITCH - FRONT BLOWER # POSITION 2 (MEDIUM LOW) | |
| 2 | CH427 (BN) | 16 | SWITCH - FRONT BLOWER # POSITION 1 (LOW) | |
| 3 | CH429 (GY-BN) | 12 | SWITCH - FRONT BLOWER # POSITION 3 (MEDIUM HIGH) | |
| 4 | CBB28 (WH-VT) | 10 | FUSE OUTPUT OR CIRCUIT BREAKER |
| Available Pigtail Kits | |

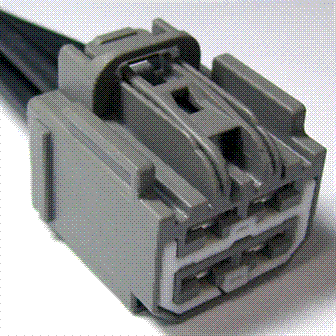

| Pigtail Kit Part Number WPT-1177 |
Service Part Number: AU2Z-14S411-BHA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses Mating Connector WPT-1408 Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
