Connector End View (C291) - INLINE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C291
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

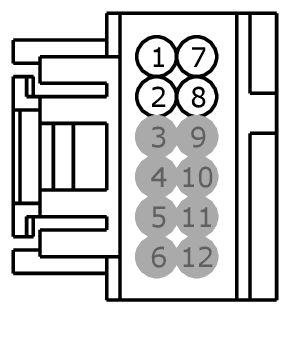

MALE
Harness 14G533

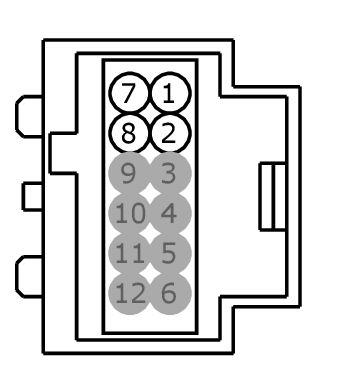

FEMALE
Harness 14335
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDB09 (WH) | 22 | |
| 2 | VDB08 (WH-BU) | 22 | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | CMF23 (WH-BU) | 22 | |
| 8 | GD123 (BK) | 22 | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDB09 (WH) | 22 | |
| 2 | VDB08 (WH-BU) | 22 | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | CMF23 (WH-BU) | 22 | |
| 8 | GD123 (BK) | 22 | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * |

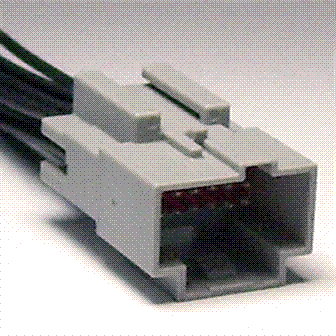

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1185 |
Service Part Number: BU2Z-14S411-AJA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses: Camera - Reverse Park Aid Switch - Gear Shift Select/Neutral Safety |
| Pigtail Kit Part Number WPT-949 |
Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses: Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety |
