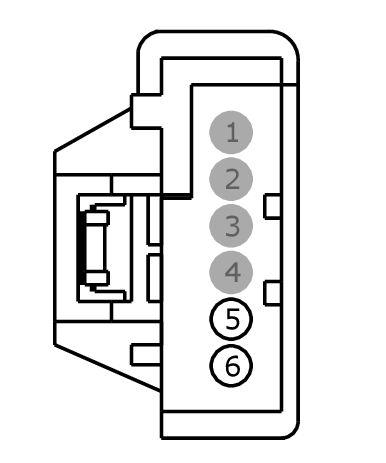

Connector End View (C289) - AIR INLET DOOR ACTUATOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C289
Description
AIR INLET DOOR ACTUATOR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CH208 (GN-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | |
| 6 | CH207 (BU-GY) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |

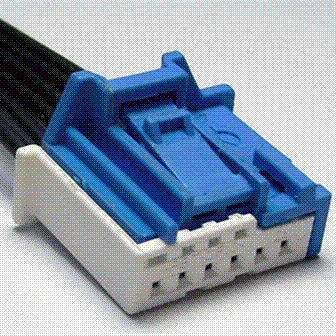

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1312 |
Service Part Number: CU2Z-14S411-BBA Gauge: 18 Pin material: Tin (greased) Cavities: 6 Vehicle Uses Motor - Heater/AC Inlet Door |
