Connector End View (C265) - INLINE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C265
Description
INLINE
Color
BK
Base Part #
Service Pigtail
Not Available

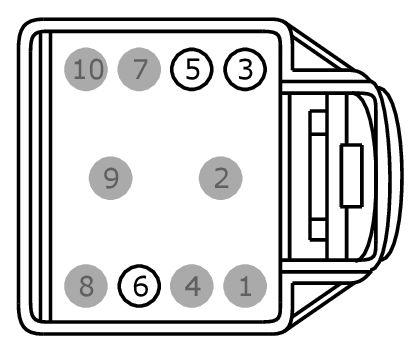

MALE
Harness 14401

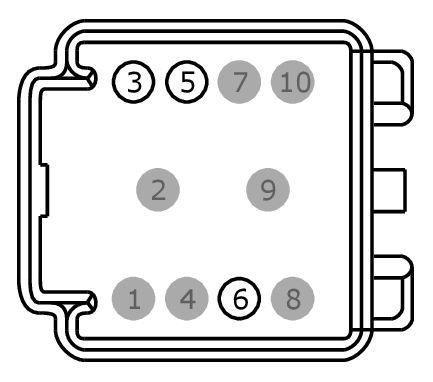

FEMALE
Harness 14335
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | VDB08 (WH-BU) | 22 | |
| 4 | * | * | |
| 5 | VDB09 (WH) | 22 | |
| 6 | CMF13 (WH-BU) | 22 | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | VDB08 (WH-BU) | 22 | |
| 4 | * | * | |
| 5 | VDB09 (WH) | 22 | |
| 6 | CMF13 (WH-BU) | 22 | |
| 7 | * | * | |
| 8 | * | * | |
| 8 | * | * | |
| 9 | * | * |
